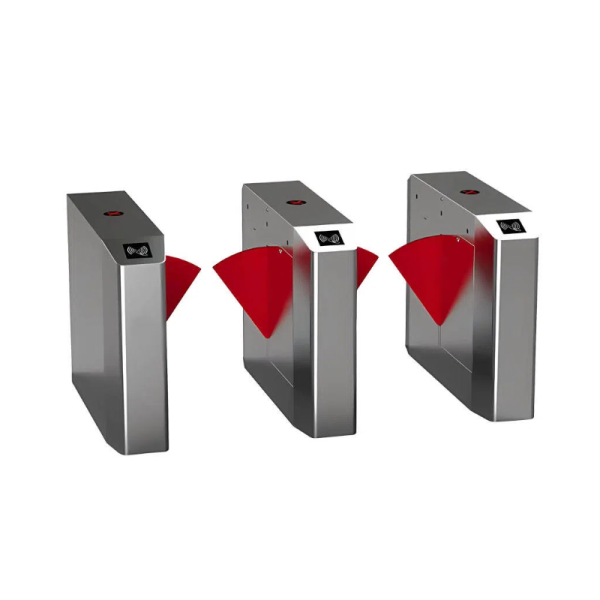

TGW-WT002 is a cost-effective, stable and reliable channel management device designed for places that require efficient personnel control, such as enterprises, schools, subways, and stadiums. It adopts the classic wing gate structure, combined with industrial-grade durable materials and intelligent control systems to ensure fast passage and strict management, making it an ideal choice for entrance and exit control.
| Product Model | TGW-WT002 |
| Material Of Construction | SS-304 |
| Dimension | 1200mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 45Kgs. |
| Wing Width | 250mm |
| Passage Width | 550~600mm |
| Safety & Logic Sensors | 3 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this wing gate?

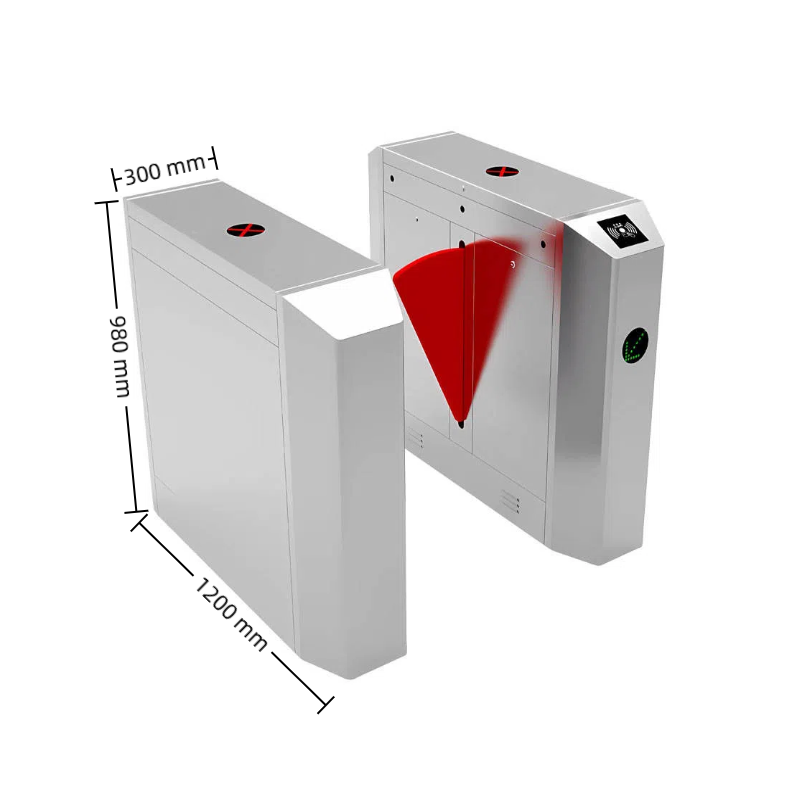

Our standard wing gate size is 1200mm (length) x 300mm (width) x 980mm (height) and weighs about 45kgs. Customized size can be made upon request.
2. What materials are used for this flap gate?
The wing gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.

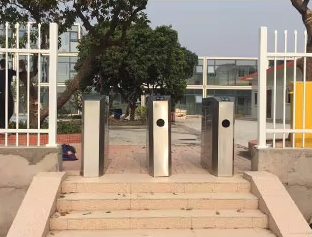

3. Is this wing gate suitable for outdoor use?
Yes, our wing gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this wing gate work?

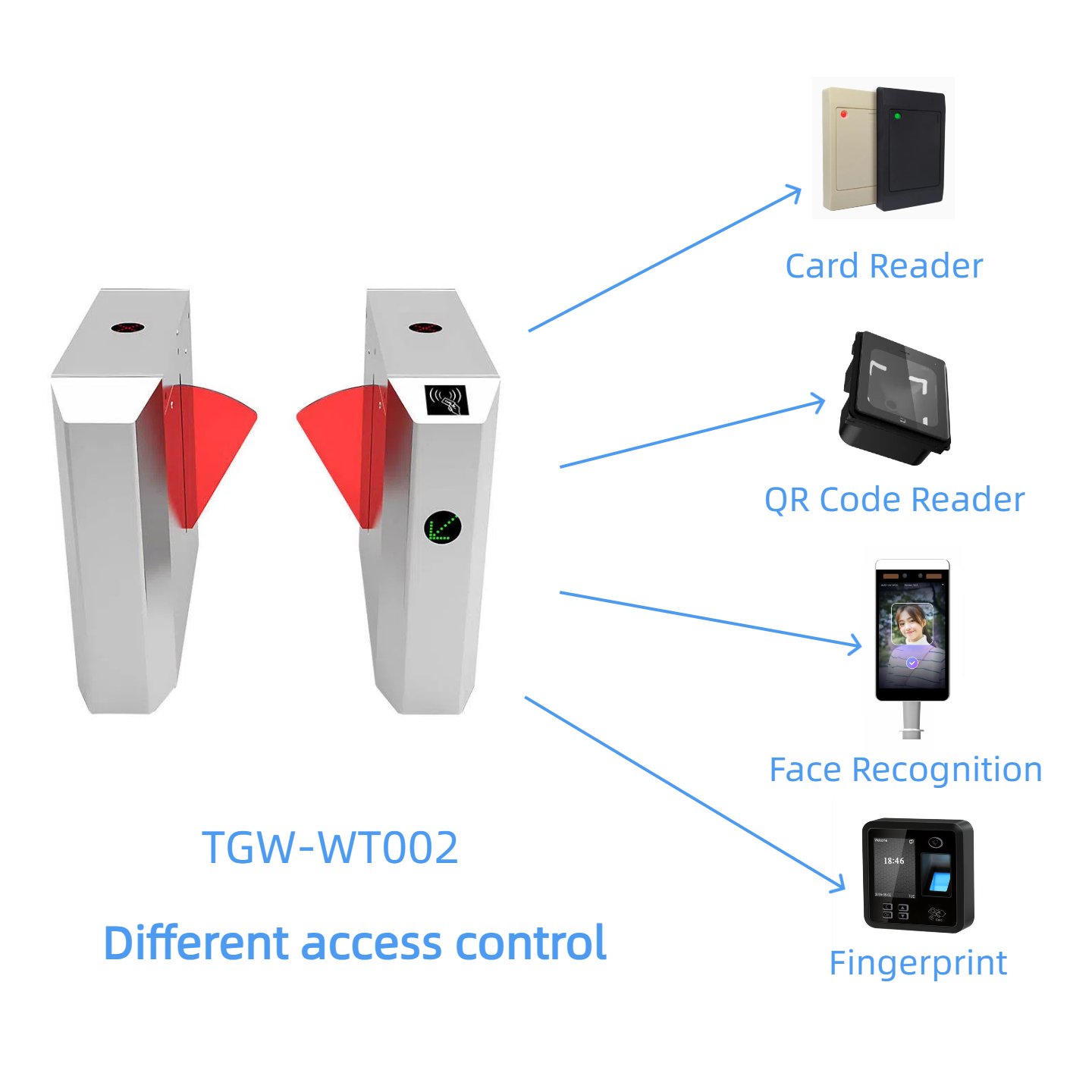

Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this flap gate support two-way access?
Yes, this wing gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the wing gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-WT002 |
| Material Of Construction | SS-304 |
| Dimension | 1200mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 45Kgs. |
| Wing Width | 250mm |
| Passage Width | 550~600mm |
| Safety & Logic Sensors | 3 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this wing gate?
Our standard wing gate size is 1200mm (length) x 300mm (width) x 980mm (height) and weighs about 45kgs. Customized size can be made upon request.
2. What materials are used for this flap gate?
The wing gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this wing gate suitable for outdoor use?
Yes, our wing gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this wing gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this flap gate support two-way access?
Yes, this wing gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the wing gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
Shenzhen TigerWong Technology Co., Ltd Our is a leading global provider of intelligent parking management systems and access control system solutions, focusing on ALPR/ANPR parking systems, parking management system，pedestrain turnstiles and face recognition systems.
