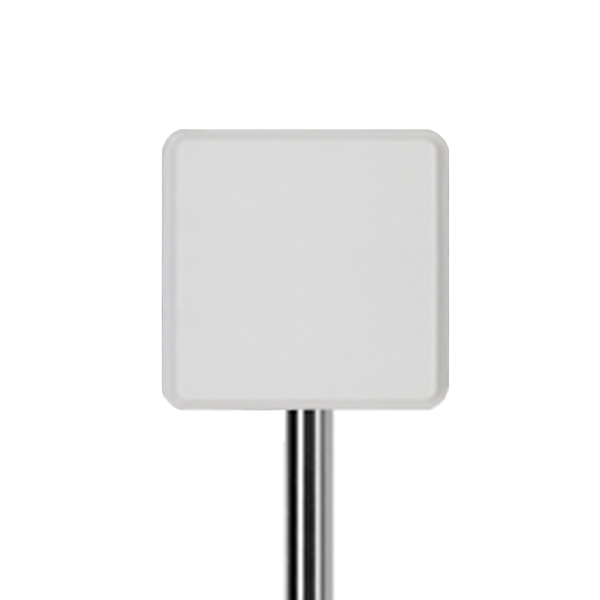

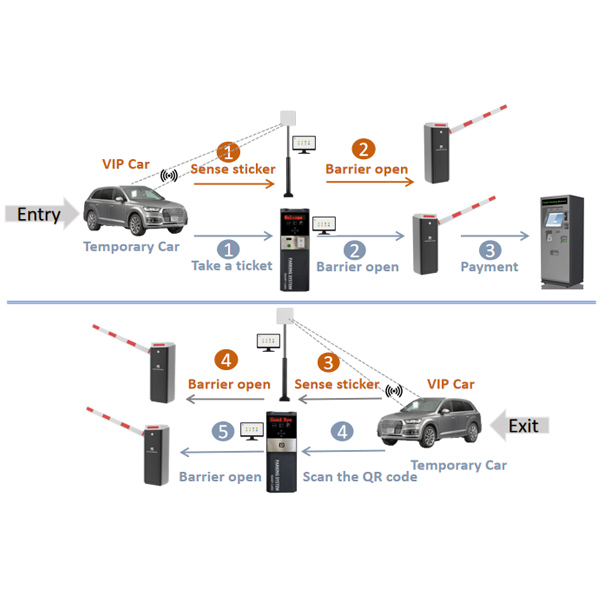

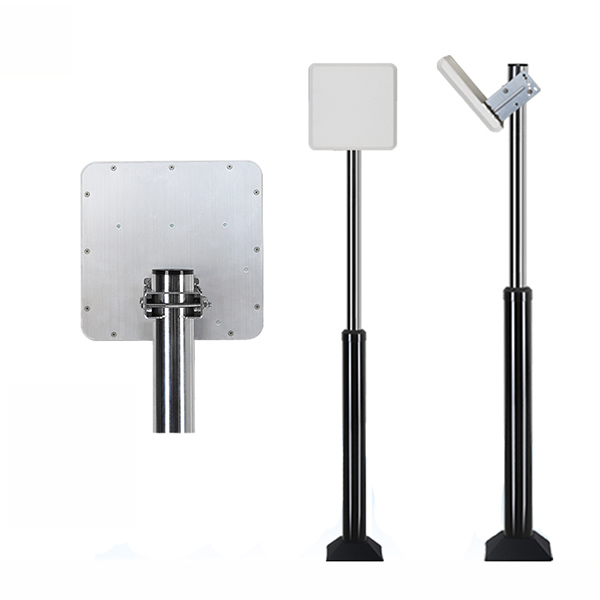

TGW-5309 UHF & Bluetooth Parking System is designed for reliable, long-range vehicle access control. Featuring advanced signal processing technology, it offers strong anti-interference performance for stable operation in complex environments.Its high-strength, durable housing ensures long-term performance even in harsh outdoor conditions, making it ideal for both commercial and industrial parking applications.
| Product Model | TGW-5309 |
| Frequency | 865-868MHz(EU standard),902-928MHz(US standard) |
| Protocol | ISO18000-6C(EPC GEN2) |
| Built-in antenna | 9dbi circular antenna |
| Work mode | Active/trigger/answer/password mode(optional) |
| RF power | 26dbm(adjustable) |
| Read distance | 3-9m(depends on tag) |
| Interface | RS232/USB/WG26/RELAY/TCP/IP/POE/WIFI(optional) |
| Power supply | 9-36V |
| Operating Temp | -10~+55℃ |
| Storage Temp | -20~+75℃ |

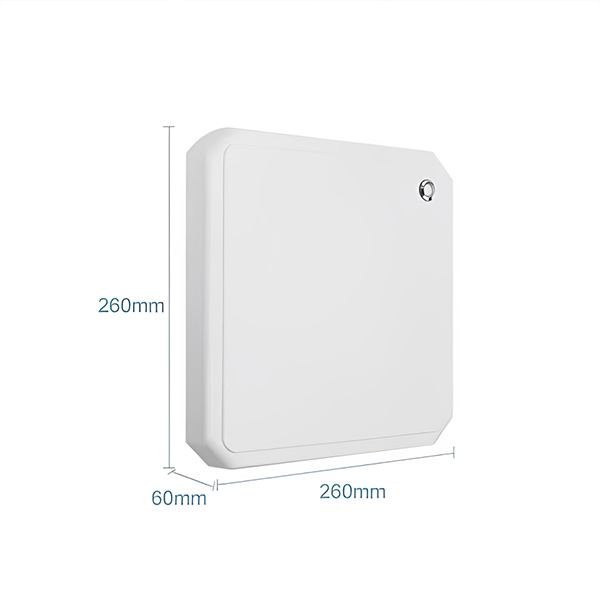

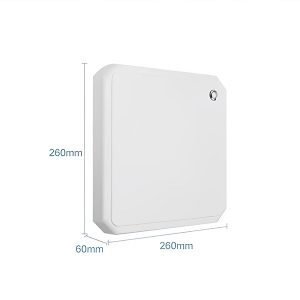

| Reader Size | 260*260*60mm |
| Reader weight | 1.2kg |
| Packing Size | 400*300*100mm |
| Package Weigh | 2.3kg |
1. What types of tags can this reader read?
This reader supports UHF RFID tags that meet the ISO 18000-6C (EPC global Gen2) standard.
2. What is the maximum reading distance of the reader?
The reading distance range is 3-9 meters, but the actual distance depends on the size of the tag, the environment, and the configuration of the antenna.
3. Does the reader support simultaneous reading of multiple tags?
Yes, this reader supports simultaneous reading of multiple tags and can read hundreds of tags per second.
4. How to integrate the reader into an existing system?
The reader provides multiple communication interfaces (such as RS232, RS485, TCP/IP, etc.) and comes with a detailed API and SDK for easy integration and development.
5. What are the dimensions and weight of the reader?
The dimensions of the UHF reader are 260mm x 260mm x 60mm and the weight is about 1.2kg.
6. What is the operating temperature range of the reader?
The operating temperature range of the reader is -10℃ to +55℃ and the storage temperature range is -20℃ to +75℃.
| Product Model | TGW-5309 |
| Frequency | 865-868MHz(EU standard),902-928MHz(US standard) |
| Protocol | ISO18000-6C(EPC GEN2) |
| Built-in antenna | 9dbi circular antenna |
| Work mode | Active/trigger/answer/password mode(optional) |
| RF power | 26dbm(adjustable) |
| Read distance | 3-9m(depends on tag) |
| Interface | RS232/USB/WG26/RELAY/TCP/IP/POE/WIFI(optional) |
| Power supply | 9-36V |
| Operating Temp | -10~+55℃ |
| Storage Temp | -20~+75℃ |
| Reader Size | 260*260*60mm |
| Reader weight | 1.2kg |
| Packing Size | 400*300*100mm |
| Package Weigh | 2.3kg |
1. What types of tags can this reader read?
This reader supports UHF RFID tags that meet the ISO 18000-6C (EPC global Gen2) standard.
2. What is the maximum reading distance of the reader?
The reading distance range is 3-9 meters, but the actual distance depends on the size of the tag, the environment, and the configuration of the antenna.
3. Does the reader support simultaneous reading of multiple tags?
Yes, this reader supports simultaneous reading of multiple tags and can read hundreds of tags per second.
4. How to integrate the reader into an existing system?
The reader provides multiple communication interfaces (such as RS232, RS485, TCP/IP, etc.) and comes with a detailed API and SDK for easy integration and development.
5. What are the dimensions and weight of the reader?
The dimensions of the UHF reader are 260mm x 260mm x 60mm and the weight is about 1.2kg.
6. What is the operating temperature range of the reader?
The operating temperature range of the reader is -10℃ to +55℃ and the storage temperature range is -20℃ to +75℃.
