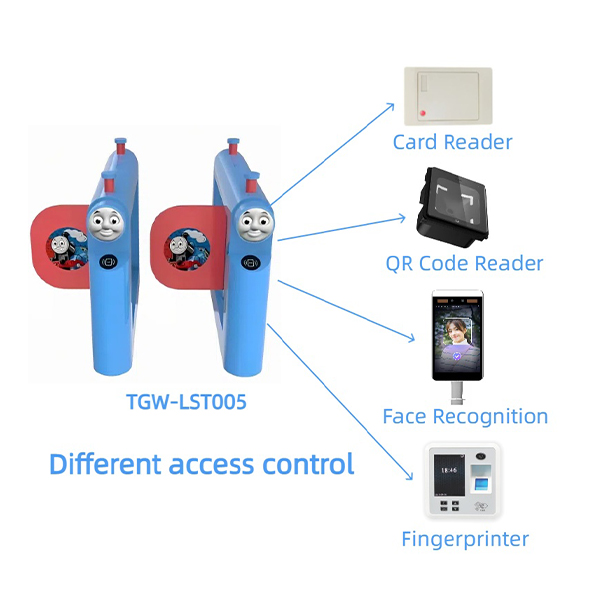

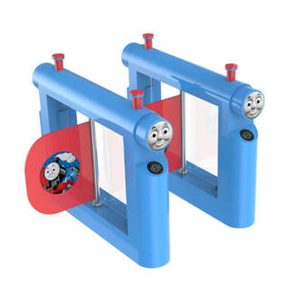

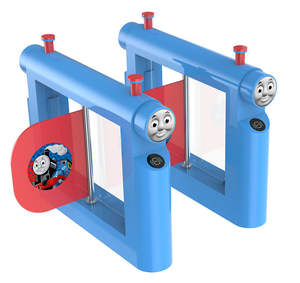

TGW-LST005 is a customized gate full of childish fun. The overall design is based on Thomas & Friends to attract children’s attention. It supports multiple identity authentication methods such as card swiping, face recognition, QR code, etc., to meet the needs of scenes with many children such as kindergartens, schools, and amusement parks.
| Product Model | TGW-LST005 |
| Material Of Construction | SS-304 |
| Dimension | 1000mm (L) X 220mm (W) X 800mm (H) (customizable) |
| Drive | DC Brushless |
| Net Weight | 40Kgs. |
| Wing Width | Std. Lane 300mm; Wide Lane 420mm |
| Passage Width | Std. Lane 600mm; Wide Lane 900mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |

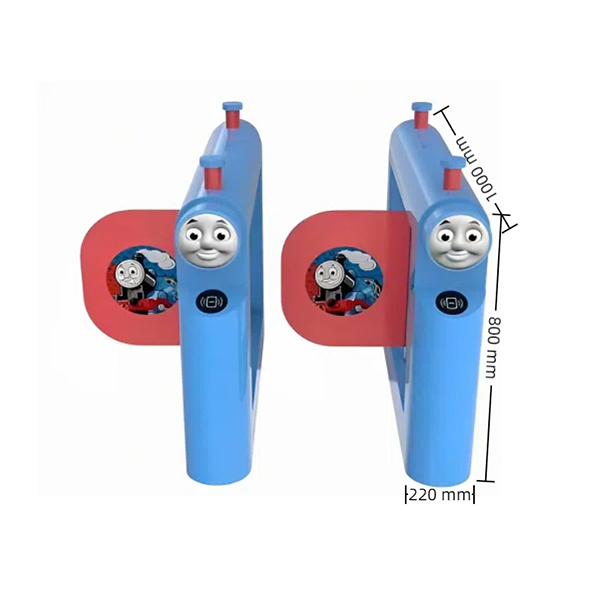

1.What is the size and weight of this swing turnstile gate?
Our standard swing turnstile gate size is 1000mm (length) x 220mm (width) x 800mm (height) and weighs about 40kgs. Customized size can be made upon request.
2.What materials are used for this swing turnstile gate?
The swing turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3.Is this swing turnstile gate suitable for outdoor use?
Yes, our swing turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4.How does this swing turnstile gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5.Can this swing turnstile gate support two-way access?
Yes, this swing turnstile gate can support one-way or two-way access.
6.How do wing gates respond to emergencies?
They can be connected to the fire protection system and automatically open upon receiving an alarm signal, forming a barrier-free passage.

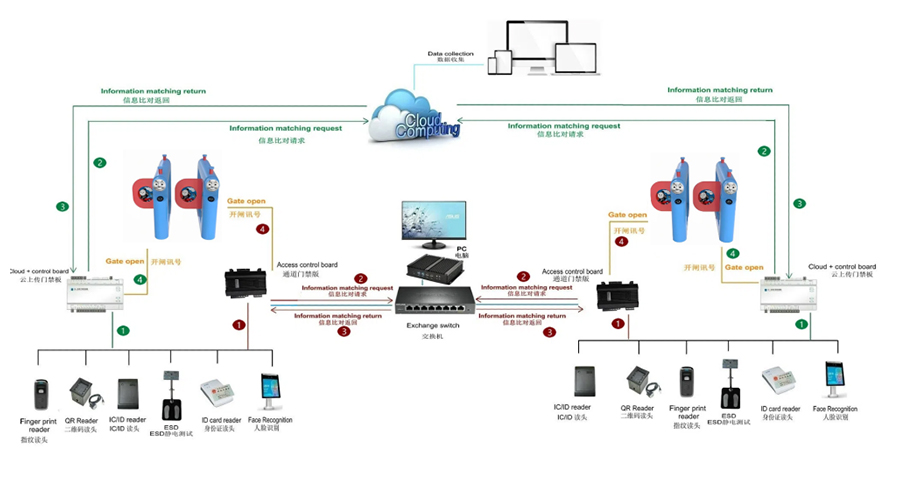

7.Can the swing turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8.Will it fade or rust when used outdoors?
Using automotive-grade paint technology and rust-proof metal material, it is not easy to fade or rust.
9.Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
10.How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
