Tripod Turnstile Gate – TGW-TT030

Product Model	TGW-TT030
Material Of Construction	SS-304

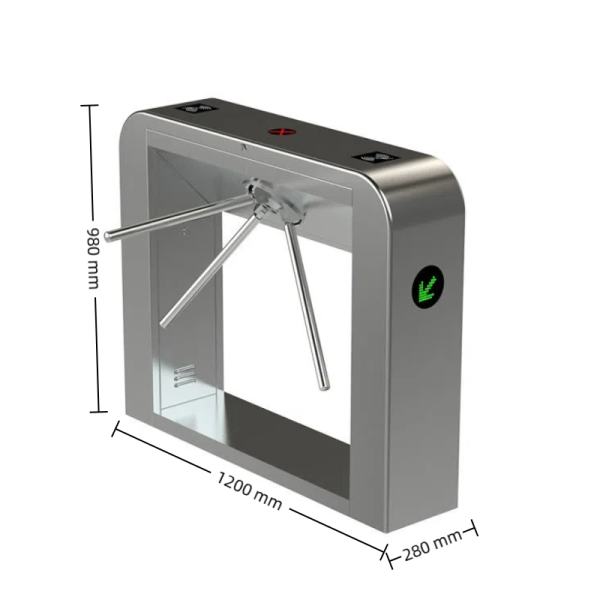

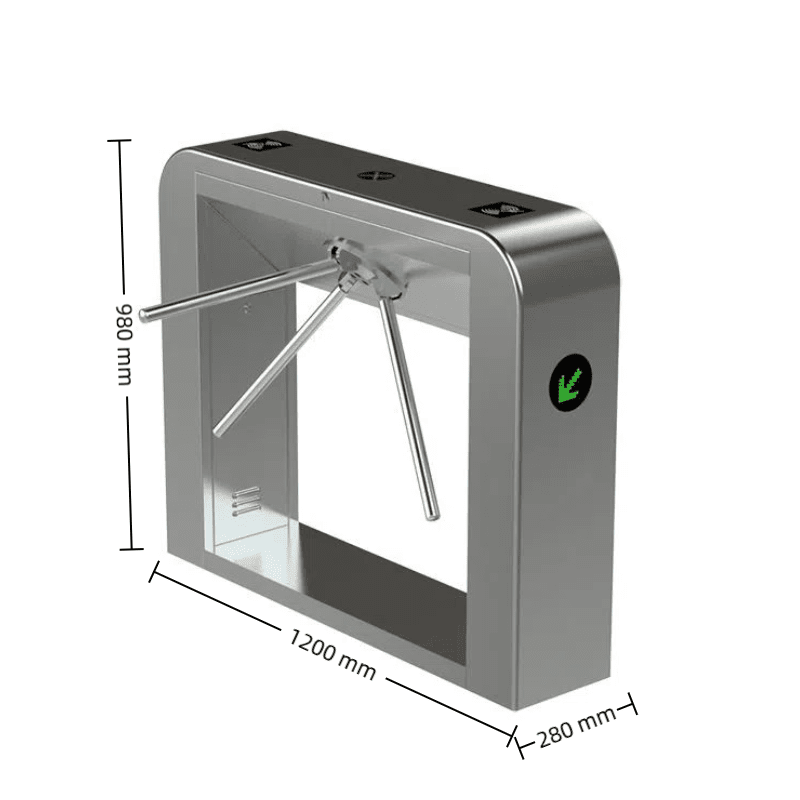

Dimension	1200mm (L) X 280mm (W) X 980mm (H) (customizable)
Drive	Solenoid locking
Net Weight	50Kgs.
Arm Length	510mm
Passage Width	≤550mm
Material Thickness	1.5MM
Card Reader Provision	2 Nos. (Entry 1 & Exit 1)
Application	Bi-Directional
Relative Humidity	≤90% RH
Product Life Cycle	5 Mil. Operations
Power Supply	AC100- 220V ±10% 50/60MHZ
Throughput	30-40 People per Minute Excluding Card Validation Time
Operating Temperature	-25℃~ +60℃

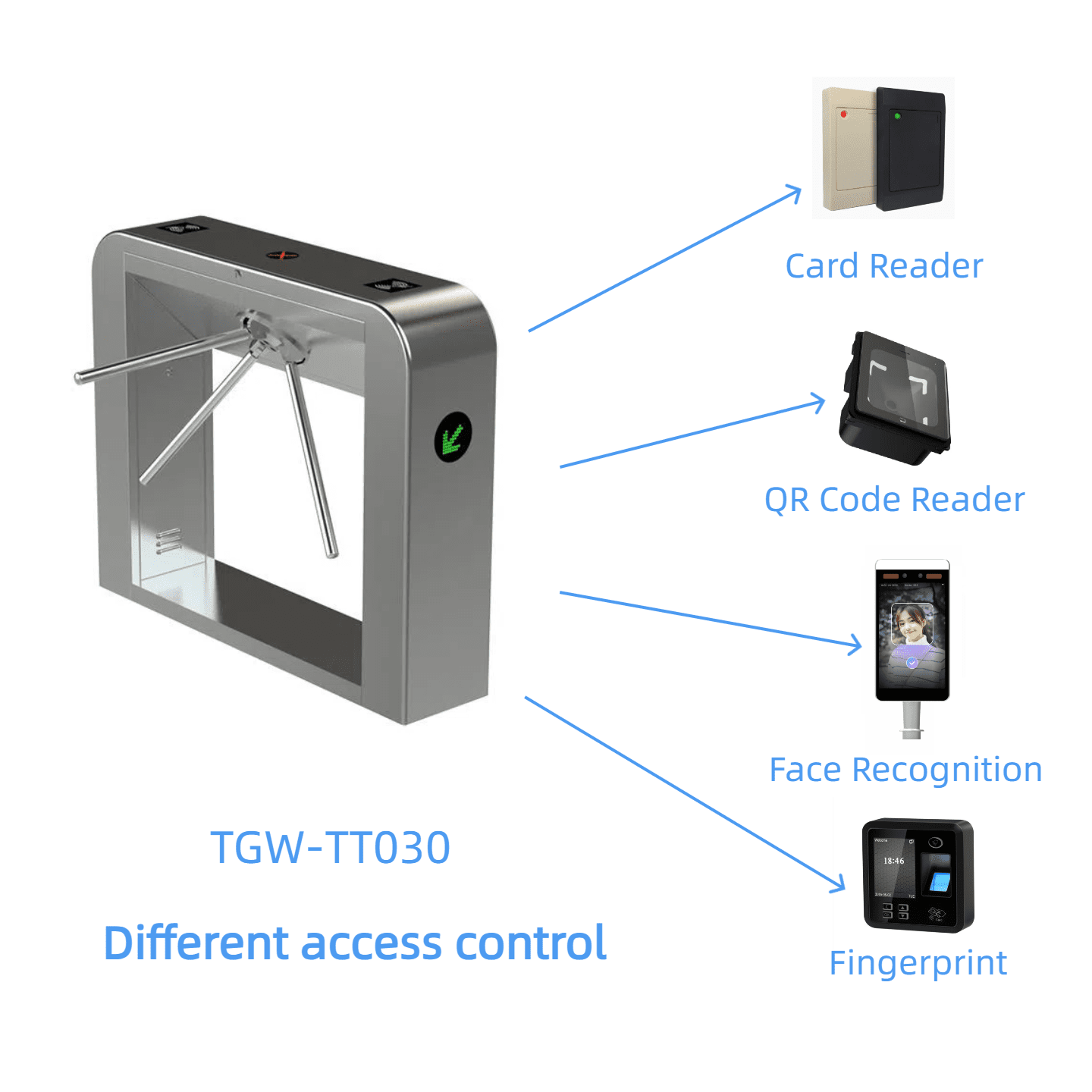

1. The Tripod Turnstile Gate may be integrated with a wide variety of access devices viz. Proximity Cards, Bi- Metric Readers, Bar Code & QR Code Readers, Face Recognition etc.
2. In case of Emergency, the tripod will drop automatically and allow for free, smooth and quick evacuation of people from within a building.
3. The integrated body has no unnecessary edges and corners, reducing visual redundancy and perfectly blending into the modern architectural style.









1. What is the size and weight of this tripod turnstile?

Our standard tripod turnstile size is 1200mm (length) x 280mm (width) x 980mm (height) and weighs about 80kg. Customized size can be made upon request.

2. What materials are used for this tripod turnstile?

The tripod turnstile is made of high-quality stainless steel 304, which is durable and weather-resistant. The arm is also made of the same stainless steel.

3. Is this tripod turnstile suitable for outdoor use?

Yes, our tripod turnstile is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.

4. How does this tripod turnstile work?

Each rotation (120°) allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.

5. Can this tripod turnstile support two-way access?

Yes, this tripod turnstile can support one-way or two-way access.

6. What is the maximum throughput capacity?

About 30-40 people per minute, depending on the configuration.

7. Can the tripod turnstile connect to my existing access control system?

Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.

8. Is professional installation required?

We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.

9. How do I maintain the turnstile?

Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
