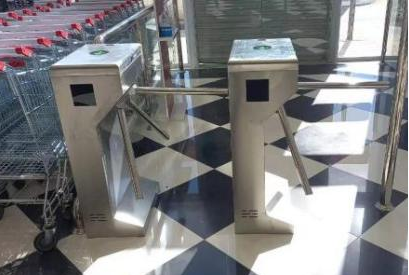

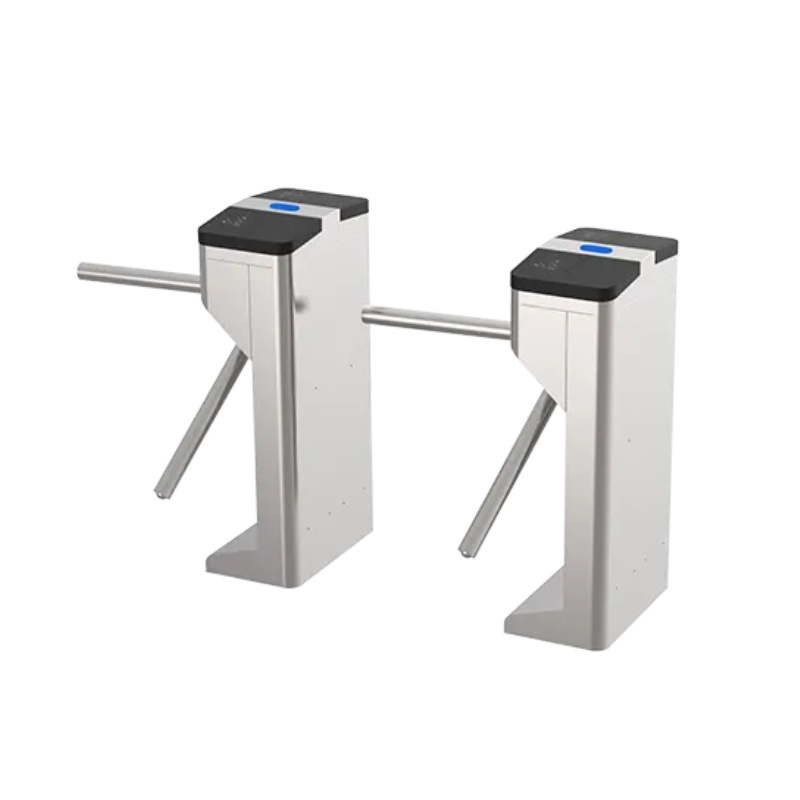

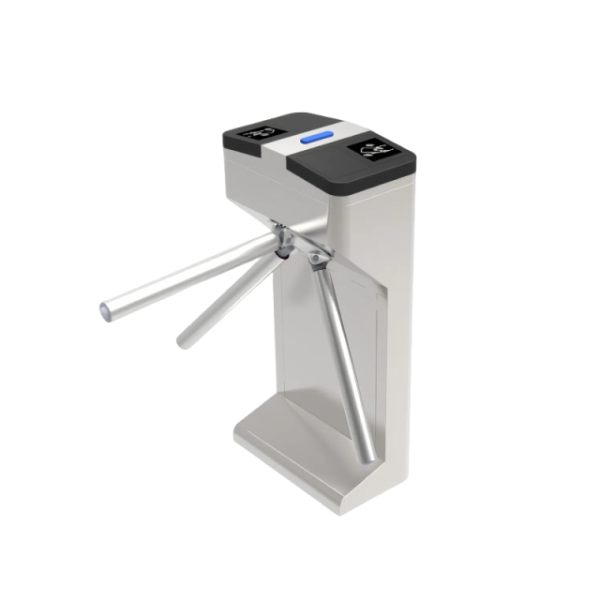

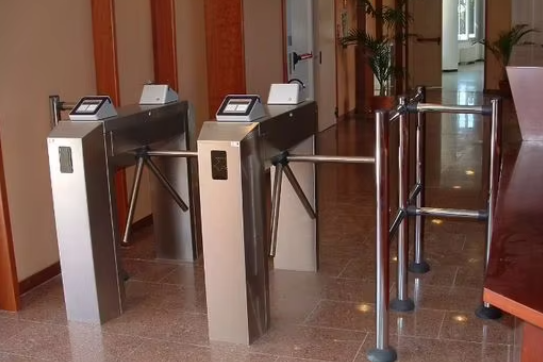

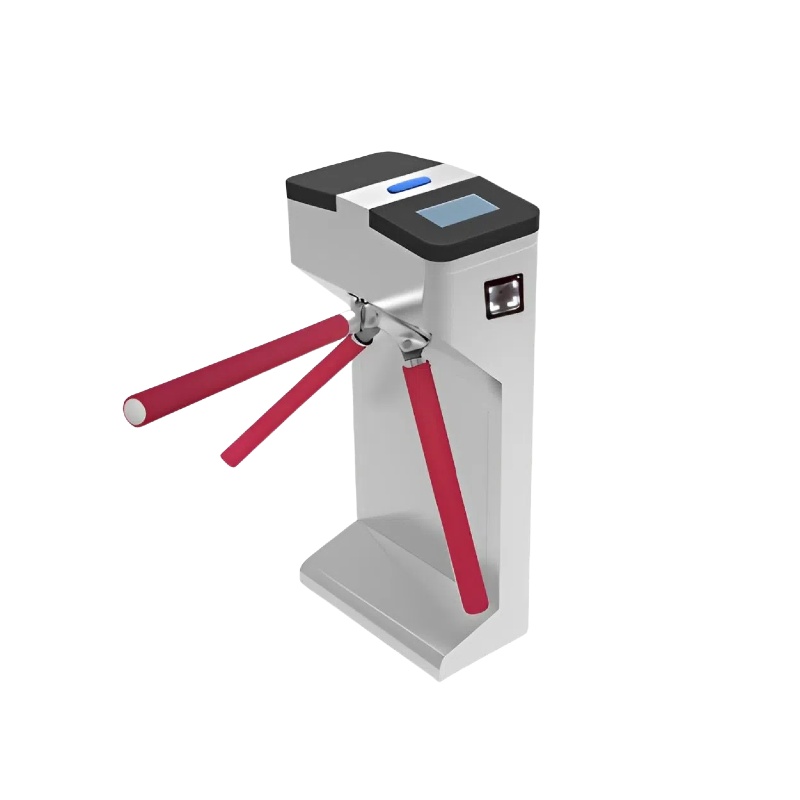

TGW-TT014 is a vertical channel management device optimized for ticketing systems. It adopts a vertical compact design and integrates ticket verification and personnel control. With its efficient recognition performance and stable mechanical structure, the product is widely used in scenic spots, stadiums, exhibition centers and other places that require fast ticket verification to achieve safe and efficient passage management.
| Product Model | TGW-TT014 |
| Material Of Construction | SS-304 |

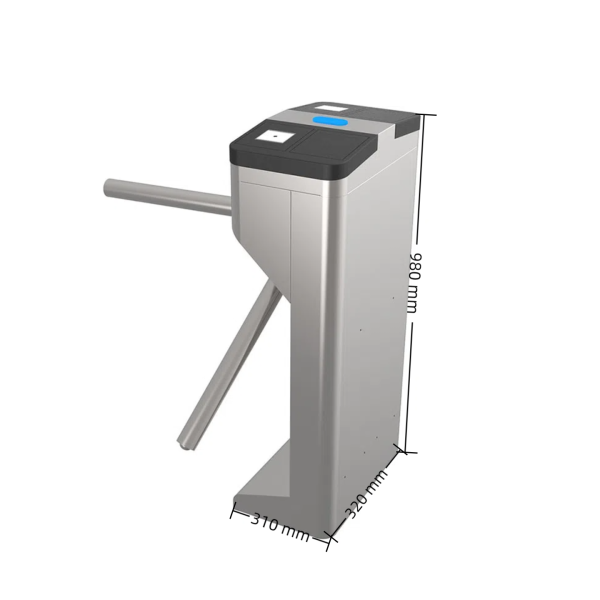

| Dimension | 320mm (L) X 310mm (W) X 980mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 30Kgs. |
| Arm Length | 510mm |
| Passage Width | ≤550mm |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 25-35 People per Minute Excluding Card Validation Time |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this tripod turnstile?
Our standard tripod turnstile size is 320mm (length) x 310mm (width) x 980mm (height) and weighs about 30kgs. Customized size can be made upon request.
2. What materials are used for this tripod turnstile?
The tripod turnstile is made of high-quality stainless steel 304, which is durable and weather-resistant. The arm is also made of the same stainless steel.

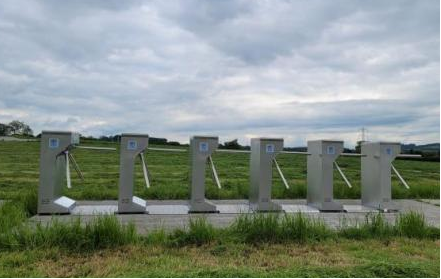

3. Is this tripod turnstile suitable for outdoor use?
Yes, our tripod turnstile is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this tripod turnstile work?

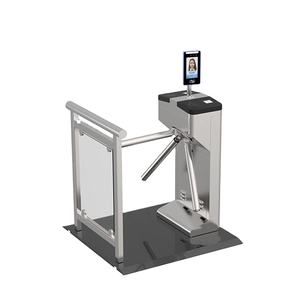

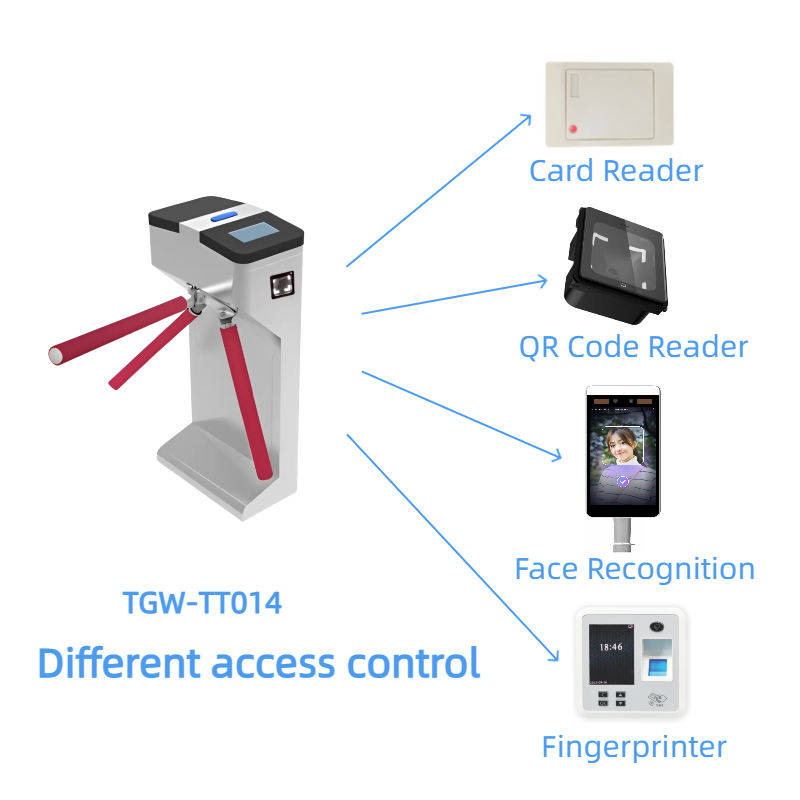

Each rotation (120°) allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this tripod turnstile support two-way access?
Yes, this tripod turnstile can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 25-35 people per minute, depending on the configuration.
7. Can the tripod turnstile connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
