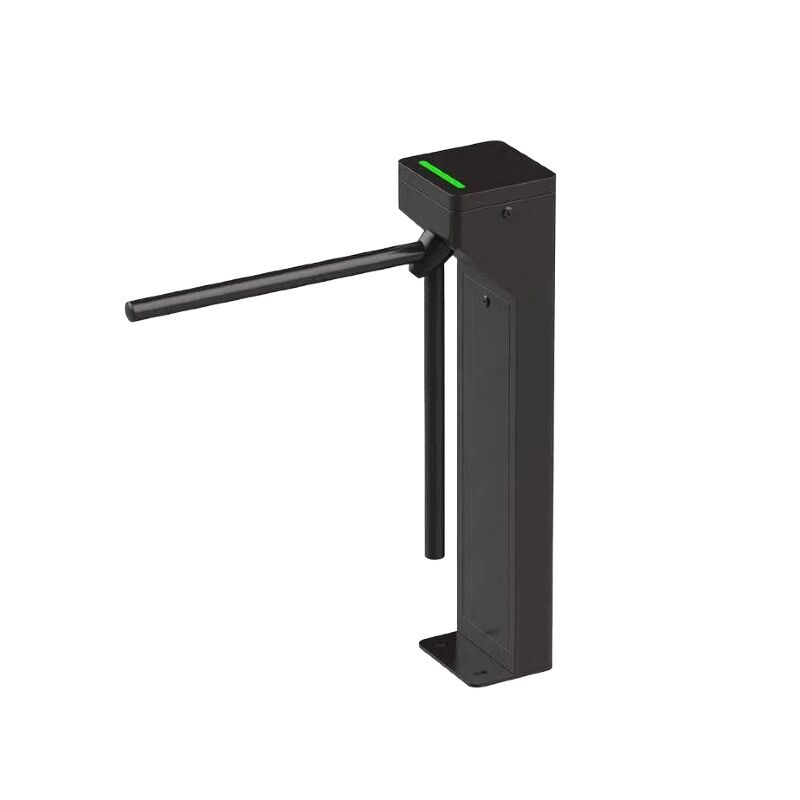

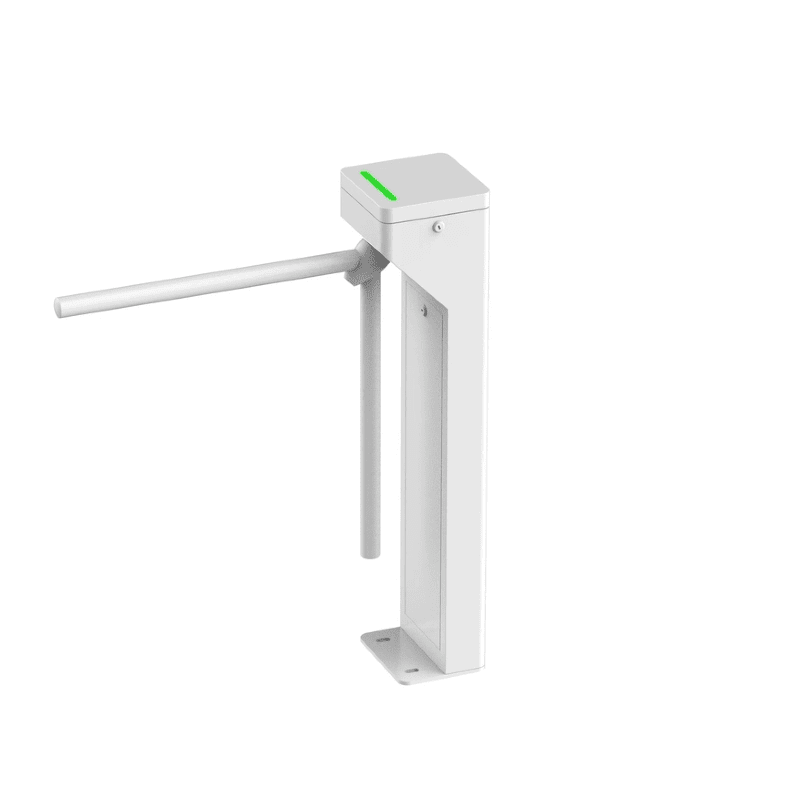

TGW-T027 is a channel management device designed for low-cost, basic control scenarios. It adopts a double-roller rotating structure, is compact in size, and easy to install. It is suitable for community access control, construction site attendance, factory channels and other places that are sensitive to budget but require basic personnel control.
| Product Model | TGW-T027 |
| Material Of Construction | SS-304 |

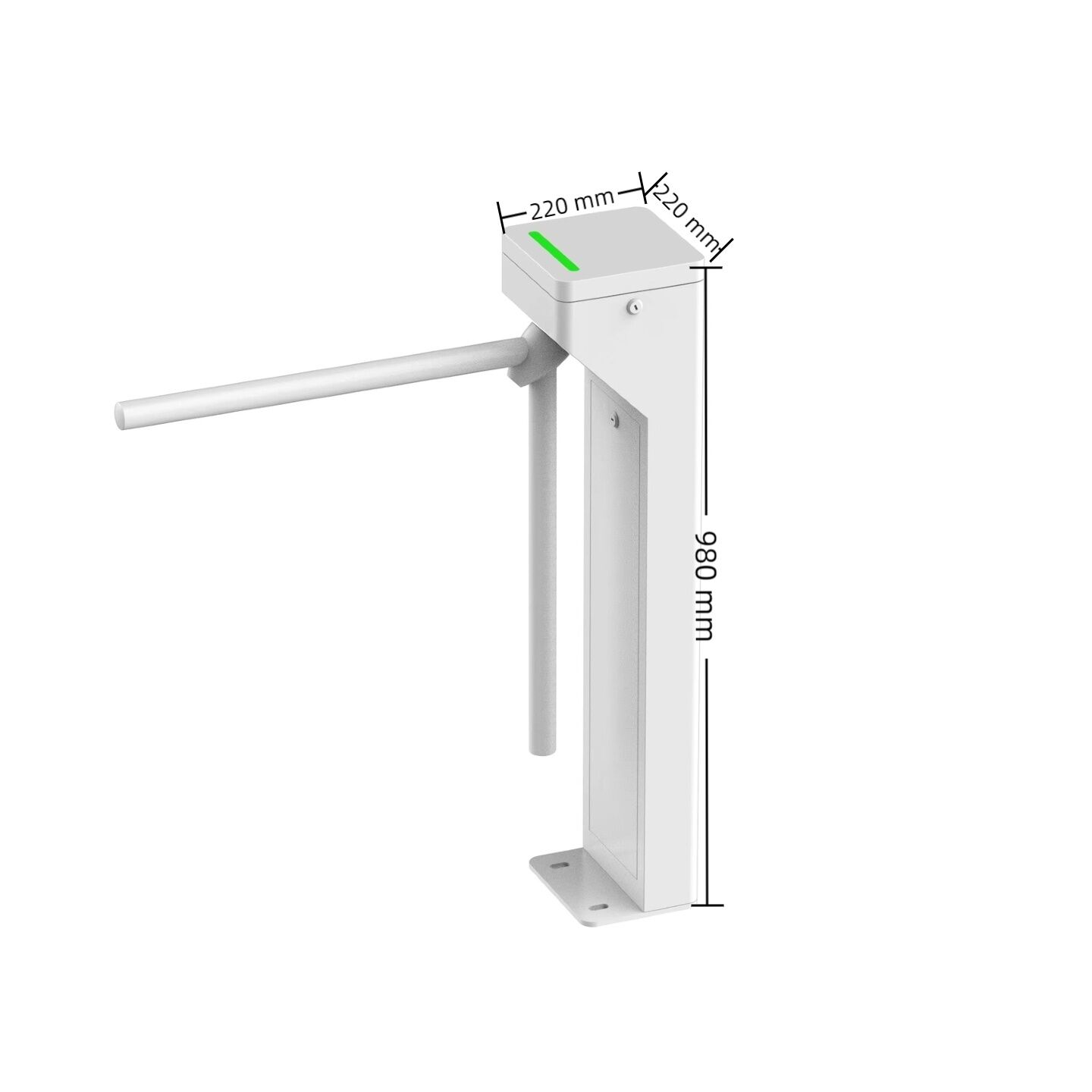

| Dimension | 220mm (L) X 220mm (W) X 980mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 25Kgs. |
| Arm Length | 510mm |
| Passage Width | ≤550mm |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 25-35 People per Minute Excluding Card Validation Time |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this turnstile gate?
Our standard tripod turnstile size is 220mm (length) x 220mm (width) x 980mm (height) and weighs about 35kg. Customized size can be made upon request.
2. What materials are used for this turnstile gate?
The tripod turnstile is made of high-quality stainless steel 304, which is durable and weather-resistant. The arm is also made of the same stainless steel.
3. Is this turnstile gate suitable for outdoor use?
Yes, our tripod turnstile is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this turnstile gate work?

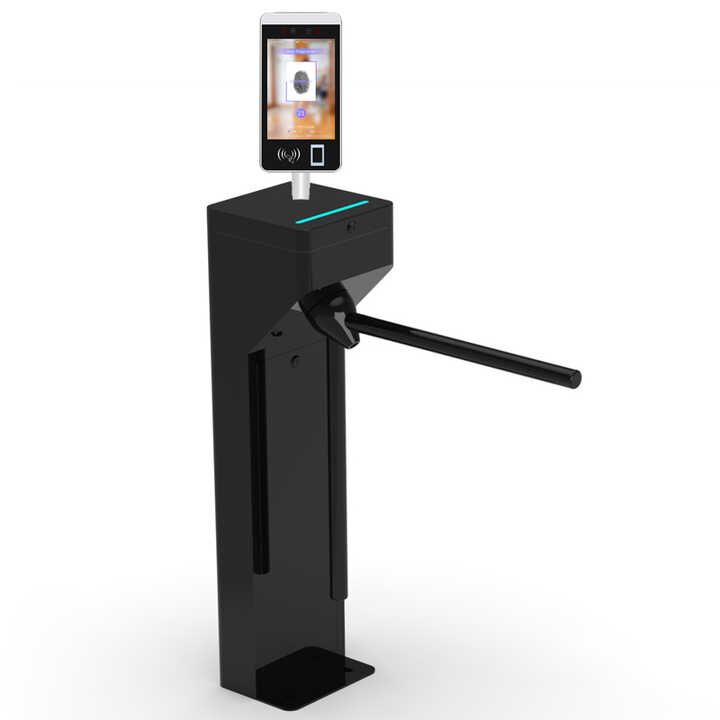

Each rotation (180°) allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this turnstile gate support two-way access?
Yes, this tripod turnstile can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 25-35 people per minute, depending on the configuration.

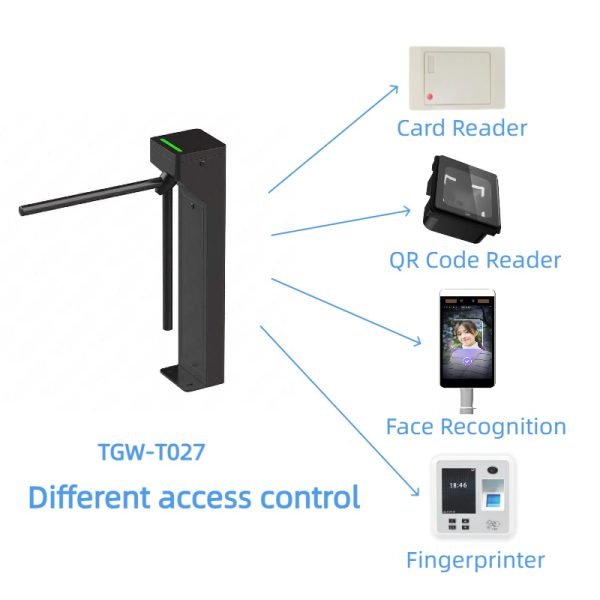

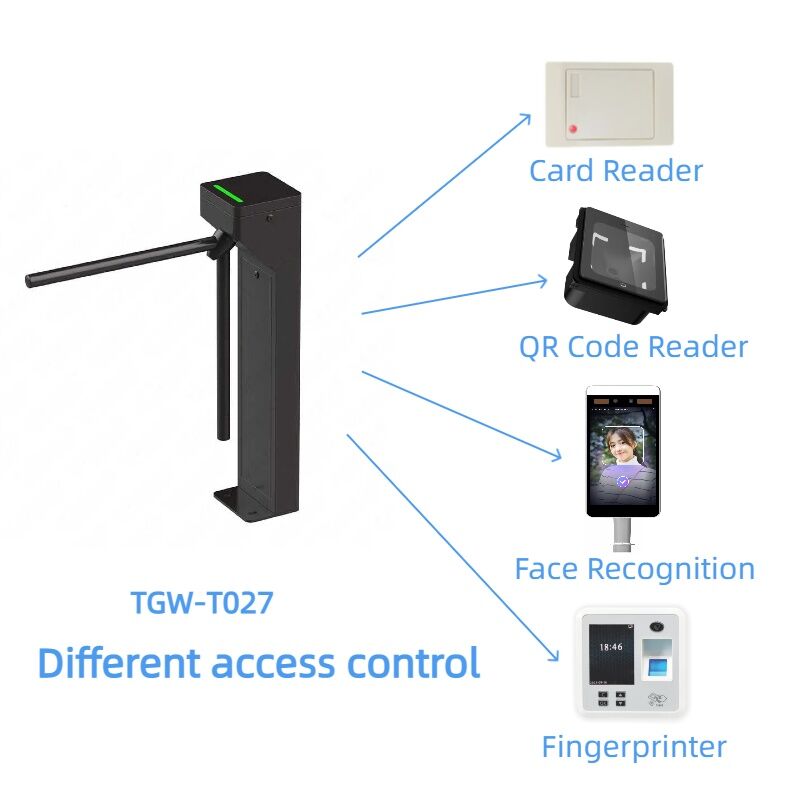

7. Can the turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-T027 |
| Material Of Construction | SS-304 |
| Dimension | 220mm (L) X 220mm (W) X 980mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 25Kgs. |
| Arm Length | 510mm |
| Passage Width | ≤550mm |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 25-35 People per Minute Excluding Card Validation Time |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this turnstile gate?
Our standard tripod turnstile size is 220mm (length) x 220mm (width) x 980mm (height) and weighs about 35kg. Customized size can be made upon request.
2. What materials are used for this turnstile gate?
The tripod turnstile is made of high-quality stainless steel 304, which is durable and weather-resistant. The arm is also made of the same stainless steel.
3. Is this turnstile gate suitable for outdoor use?
Yes, our tripod turnstile is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this turnstile gate work?
Each rotation (180°) allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this turnstile gate support two-way access?
Yes, this tripod turnstile can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 25-35 people per minute, depending on the configuration.
7. Can the turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
