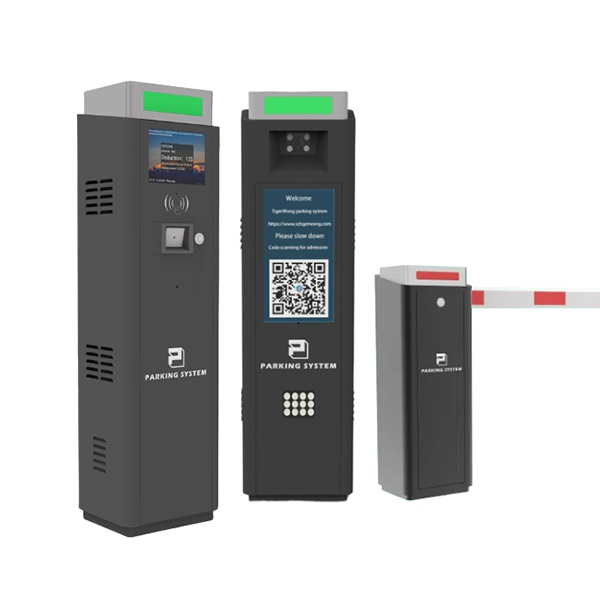

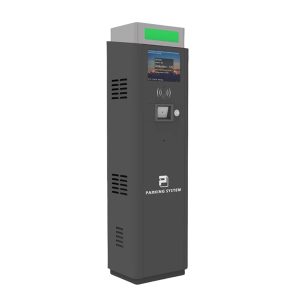

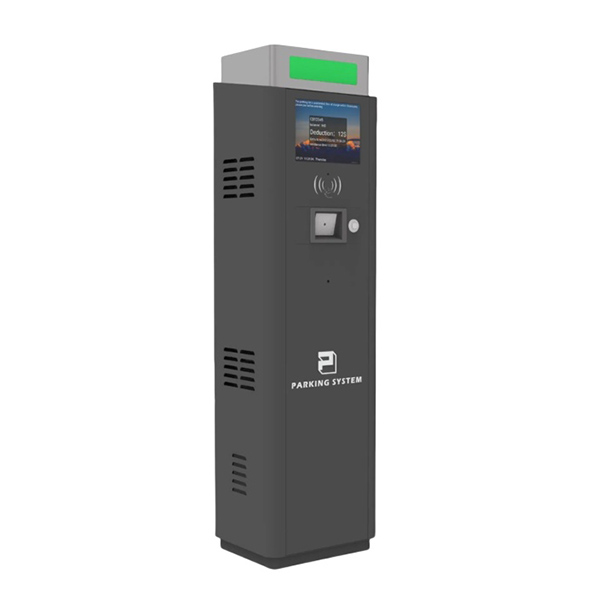

Ticket Parking System – Tiger-TP710X

1. The appearance upgraded : Adopts brushed metal panel + tempered glass material,equipped with a 10.4-inch display, with smooth lines and high-end texture, matching the style of high-end commercial,office parking lots.
2. Intelligent anti-following vehicle: built-in radar detection to prevent the gate lever from accidentally falling when the front vehicle has not completely passed.
3. Optimized user experience: standard emergency button, direct connection to monitoring center, 24-hour manual response.
4. Accurately distinguish between regularusers and temporary users. Regular users swipe their cards to exit, while temporary users scan the QR code in ticket dispenser to exit.

1. Vehicle entry: After the ground sensor coil detect the vehicle entering, it trigger the ticket dispenser. If you are regular users, you need to swipe the card , and then the gate open. If you are temporary users, you need to click the button on the ticket dispenser to get a ticket, and then the gate open.
2. Parking payment: Before the vehicle exit, it need to pay the parking fee at the central payment or manual payment office.
3. Vehicle exit: If you are regular user, you need to swipe your card.If you are temporary user, you need to scan the QR code on the ticket. and the camera capture the license plate image for secondary identification to ensure “one vehicle, one ticket”. After the system verifies that the fee has been paid, the gate will automatically open and the vehicle will exit.

1. What charging modes does this ticket dispenser support?

Supports multiple modes such as charging by time, pay-per-view, charging by time period, etc., which can be set according to actual needs.

2. Where can I buy the printing paper for the ticket dispenser?

You can buy matching printing paper from us, or you can buy standard(80*80mm) thermal printing paper on your own.

3. Can the ticket dispenser support multiple languages?

Yes, our ticket dispenser supports multiple languages, such as Spanish, Japanese, Thai, etc. which is convenient for users from different countries and regions.

4. Does the ticket dispenser require regular maintenance?

It is recommended to clean the surface and interior of the ticket dispenser regularly, check the usage of printing paper and ribbon, and replace them in time.

5. How to distinguish different users?

Regular users use card swiping to enter and exit, while temporary users use ticket collection to enter and QR code scanning to exit.

6. Can the appearance and functionality of the ticket dispenser be customized?

Yes, we support customization according to customer needs, such as changing the appearance color, adding a logo, customizing functional modules, etc.

7. What is the warranty period for the ticket dispenser?

We provide one-year product warranty service, and we will repair or replace faulty parts free of charge during the warranty period.

8. Is the installation of the ticket dispensercomplicated?

It’s not complicated, we provide detailed installation instructions and video tutorials, you can also contact our technicians for guidance.

9. What content can the ticket dispenserprint?

The ticket dispenser supports printing parking lot name, entry time, license plate number, charging standards, QR code and other information.

10. Can a regularuser bring multiple cars in and out?

Generally not supported, unless the property management opens the “one card multiple cars” permission, otherwise it will be charged as a temporary car.

11. I lost my temporary ticket, but I remember my license plate number. Can I still exitthe parking lot?

Yes, but you need to go to the toll booth to provide your license plate number, and the administrator will check the parking record. After verification, you need to pay the fee and the gate will be opened manually.
