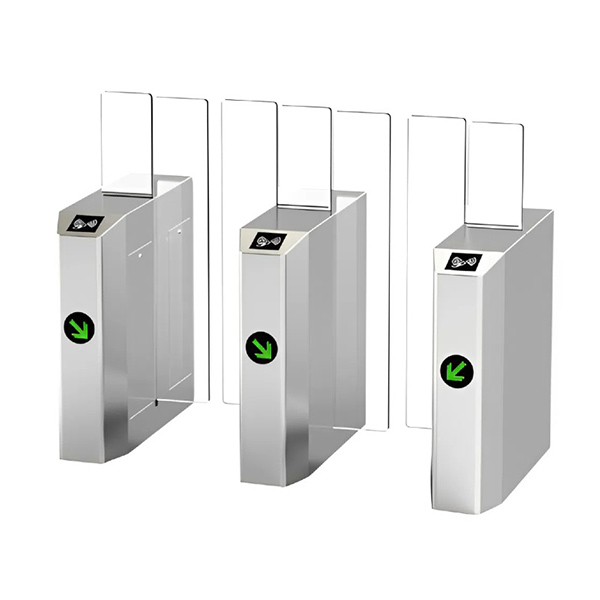

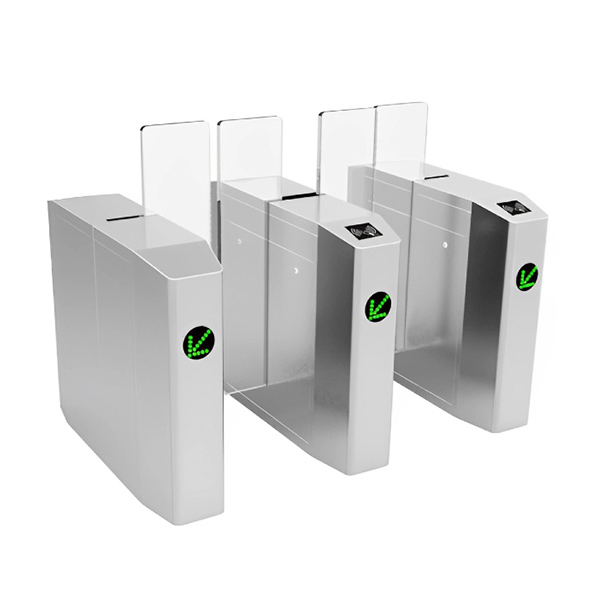

TGW-PT011 is a high-end channel management equipment, which adopts the working principle of horizontal sliding of door wings, and has the characteristics of high traffic efficiency, good safety, and elegant appearance. The product adopts a precision mechanical transmission system, and the door wings slide and open and close smoothly in the horizontal direction. It is widely used in high-standard places such as airports, subways, high-speed railway stations, government agencies, etc.
| Product Model | TGW-PT011 |
| Material Of Construction | SS-304 |
| Dimension | 1200mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushless |
| Net Weight | 80Kgs. |
| Wing Width | 275mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 5 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this sliding turnstile gate?
Our standard sliding turnstile gate size is 1200mm (length) x 330mm (width) x 980mm (height) and weighs about 80kg. Customized size can be made upon request.
2. What materials are used for this sliding turnstile gate?
The sliding turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this sliding turnstile gate suitable for outdoor use?
Yes, our sliding turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this sliding turnstile gate work?

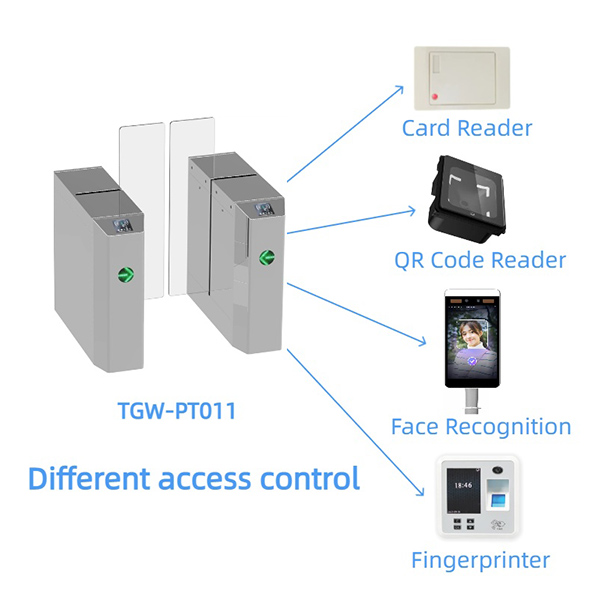

Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this sliding turnstile gate support two-way access?
Yes, this sliding turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the sliding turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. How do sliding gates respond to emergencies?
They can be connected to the fire protection system and automatically open upon receiving an alarm signal, forming a barrier-free passage.
9. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
10. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
