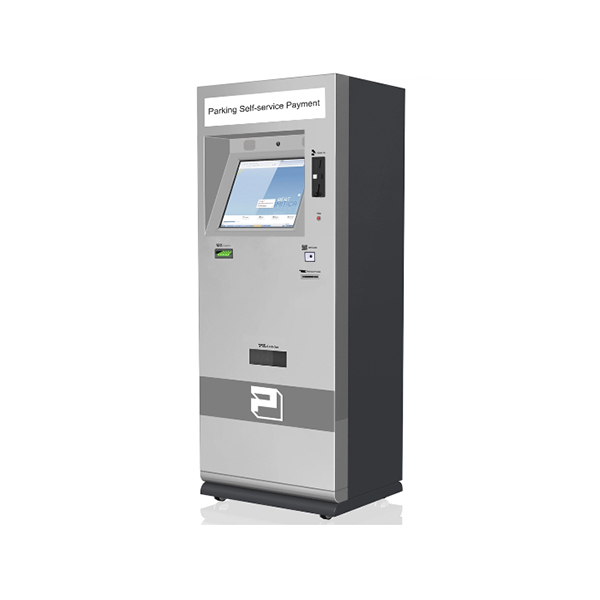

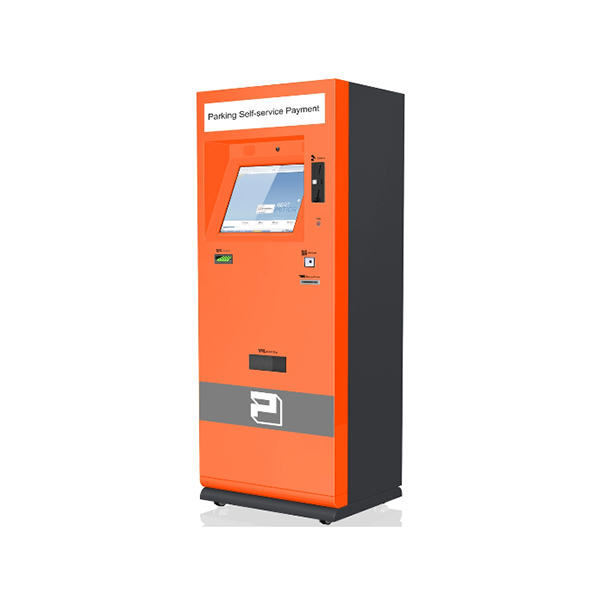

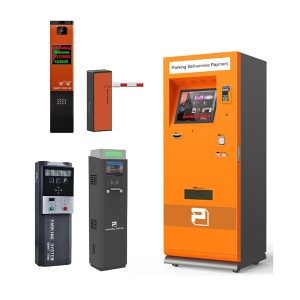

TGW-AP101P is an all-in-one self-service parking payment system that supports license plate input, QR code scanning, and VIP card verification. It accepts both card and cash payments, provides change, and operates 24/7 without staff. With automatic data recording and report export functions, it ensures fast, accurate, and efficient parking fee collection—perfect for modern unattended parking facilities.
| Product Model | TGW-AP101P |
| System | Android board 5.0 |
| Android Board | CPU:Rock chip RK3288, quad-core ARM Cortex A17 1.8 GHz RAM:DDR3 2G |
| Screen | 18.5 inch capactitive touch screen |
| Work Temperature | -25℃~70℃ |
| Work Humidity | ≤85% |
| UPS | UPS maintains the industrial control host to work normally for
about 30 minutes. |
| Communication Mode | TCP/IP |
| Network | RJ45,100M |
| Voltage | 220 v /110V±10% |
| Shell Material | Cold-rolled steel plate,material thickness above 1.5mm (standard) can be customized |
| Interface | LVDS interface
EDP interface RJ45 interface |

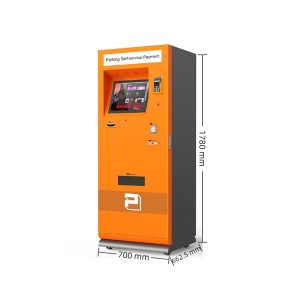

| Appearance Size | 1780* 662.5 *700mm(H*L*W) |
| Coin Receiver | Identification accuracy:95%
Identification speed:0.6s Shell material:PC plastic |
| Coin Change | Coin capacity:About 500 pieces
Applicable coin size:(diameter) 20mm-30mm,(Thickness) 1.6mm-3.3mm |
| Banknote Receiver | Operation Environment:Operation Temperature：0℃~55℃
Storage Temperature：-20℃~70℃ |
| Banknote Change | Cash out speed:Up to 10 sheets per second
Cash drawer capacity:About 700 sheets (differs according to the thickness of the banknote) |
| Printer | Line thermal printing |
| Infrared Human Body Sensor | Induction distance: limited to 5M, recommended 0-3.5M |
1. What payment methods does this self-payment machine support?
This self-payment machine supports cash payment and card payment.
2. How does this self-payment machine check the payment amount?
This self-payment machine can check the payment amount by entering the license plate number or scanning the QR code(parking ticket) or swiping the parking card.
3. What is the operating environment temperature of the self-payment machine ?
Generally -20℃~+70℃, suitable for most parking lot environments.
4. Does this self-payment machine have UPS?
Yes,UPS maintains the industrial control host to work normally for about 30 minutes.
5. What interface does this self-payment machine have?
This payment machine has LVDS interface, EDP interface and RJ45 interface.
6. If the payment is successful but the receipt is not printed, will it affect the exit?
No, the system has recorded the payment information. If you are worried, you can show the payment record to the staff at the exit booth.
7. Will the self-service payment machine leak payment information?
No, it uses financial-grade encryption technology, the payment process is safe, and does not store sensitive information such as user bank cards.
8. What to do if there is a power outage?
If there is a power outage, the device will automatically switch to backup power (maintained for 30 minutes)
