Parking guidance system – TGW-T01Q

1. The use of advanced intelligent learning anti-jamming algorithms effectively solves the adjacent lane crosstalk, side-car interference, and radio interference during the detection process of ultrasonic waves, ensuring the stability and reliability of parking space detection.
2. The receiving circuit uses a variety of combined judgment methods to enhance the anti-interference and detection stability of the equipment.
3. Adopt short circuit, reverse connection, and wrong connection protection design to prevent electrical damage to related equipment caused by short circuit, reverse connection, and wrong connection caused by incorrect wiring during construction.
4. External dual LED status indication, you can understand the working status of the equipment only by observing the ground, and you can know the abnormal situation at a glance.

1. Parking space status detection: Use ultrasonic detector to monitor parking space occupancy in real time, analyze vehicle entry or exit status, and update parking space status data in real time.

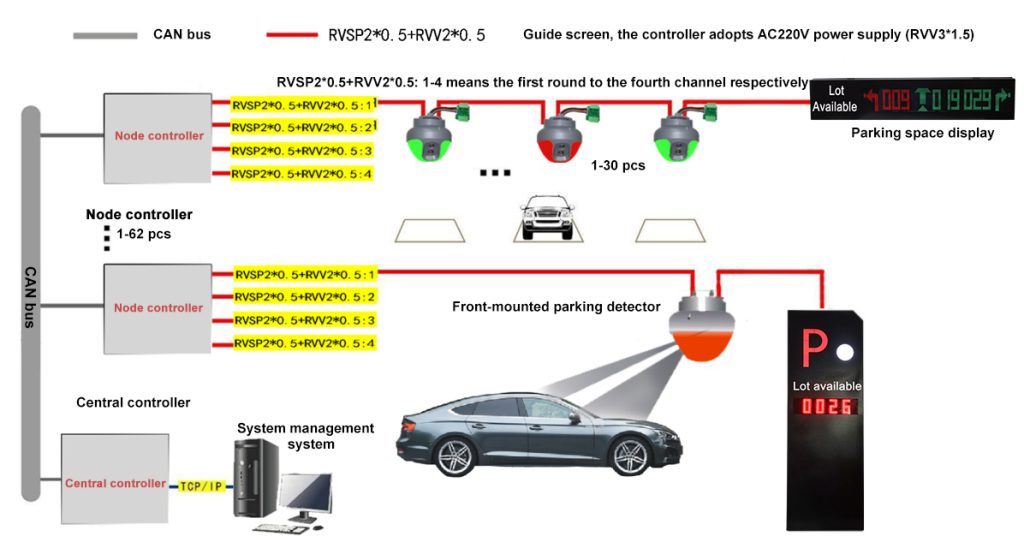

2. Data processing and transmission: Process the detection data locally, transmit it to the central management system via wired or wireless network, and receive and execute the instruction issued by the system.

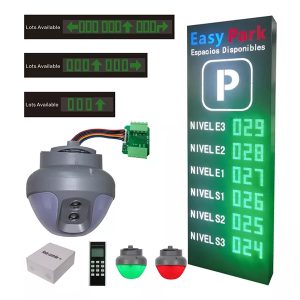

3. Guidance Instructions: Control the LED indicator light (red/green),according to the system instructions to display the parking space occupancy status and the number of free parking spaces on the display screen.

1. What is the detection accuracy of the integrated ultrasonic detector?

The accuracy >99.9%, enabling accurate vehicle identification.

2. What is the detection distance of the integrated ultrasonic detector?

The detection distance is generally 0.3-5 meters.

3. What is the operating environment temperature of the integrated ultrasonic detector?

Generally -20℃~+65℃, suitable for most parking lot environments.

4. What is the power consumption of an integrated ultrasonic detector?

Low power consumption, <1W.

5. What is the detection principle of the integrated parking guidance detector?

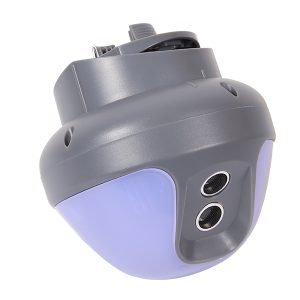

The ultrasonic detector detect whether there is a vehicle in the parking space by emitting and receiving ultrasonic signals to identify the parking space status.

6. Are there any requirements for the equipment installation height?

Yes, the generally recommended installation height is between 2.2-2.5 meters. The ultrasonic detector need to ensure a suitable detection distance from the roof.

7. Will multiple detectorinterfere with each other?

No, our products will prevent mutual interference by using different communication channels and reasonable installation spacing.

8. Can the system collect parking space usage statistics?

Yes, the central management system can collect statistics on parking space turnover rate, peak usage, average parking time and parking space utilization rate.

9. What are the precautions for installing an integrated ultrasonic detector?

The installation position should be directly opposite to the center of the parking space. The installation height should be within the detection range of the detector. Avoid obstructions that affect detection.
