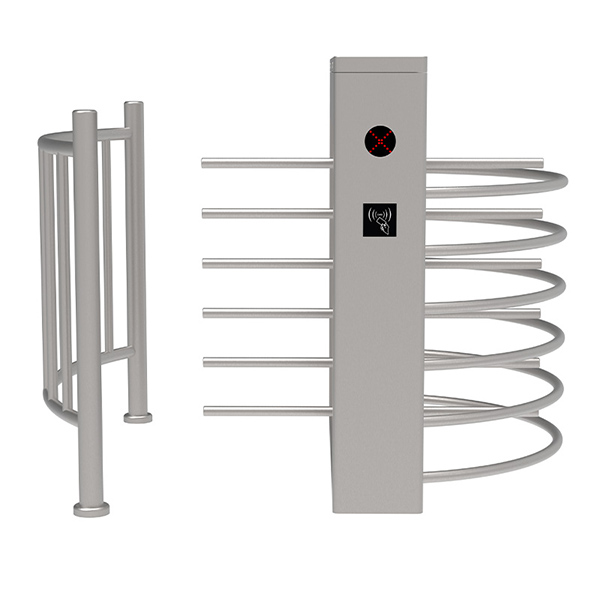

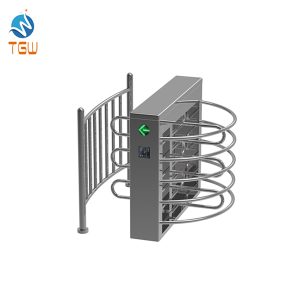

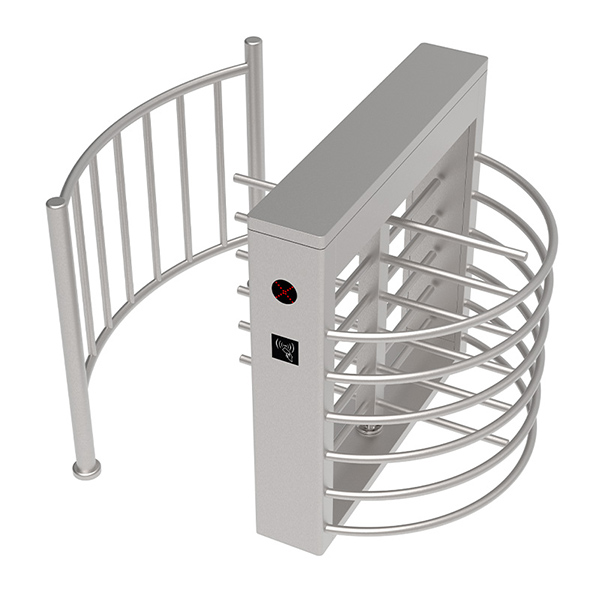

TGW-FH001 is an intelligent channel management device, the height of the gate is usually about 1.2 meter, which combine safety and traffic efficiency. The product adopt modular design, realize personnel control through the rotation of the bearing shaft, and is widely used in office buildings, subway stations, scenic spots, campuses and other places that need to balance safety and traffic efficiency.
| Product Model | TGW-HH001 |
| Material Of Construction | SS-304 |
| Dimension | 1400mm (L) X 1400mm (W) X 1200mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 120Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Single |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |

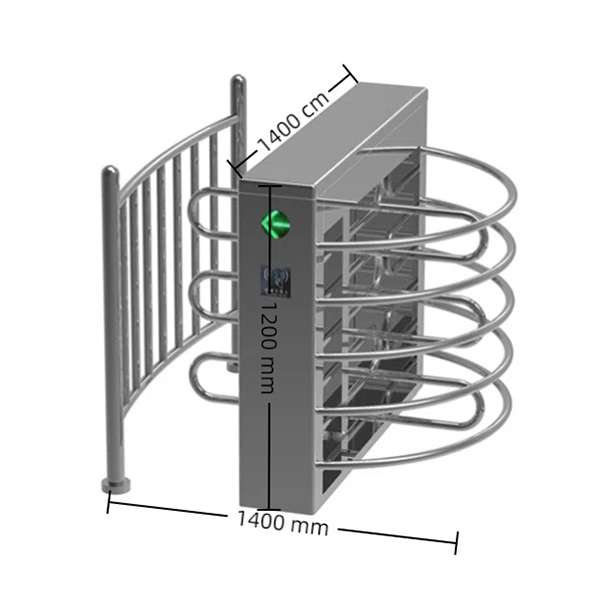

1. What is the size and weight of this half height turnstile gate?
Our standard half height turnstile gate size is 1400mm (length) x 1400mm (width) x 1200mm (height) and weighs about 120kg. Customized size can be made upon request.
2. What materials are used for this half height turnstile gate?
The half height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this half height turnstile gate suitable for outdoor use?
Yes, our half height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this half height turnstile gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this half height turnstile gate support two-way access?
Yes, this half height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.

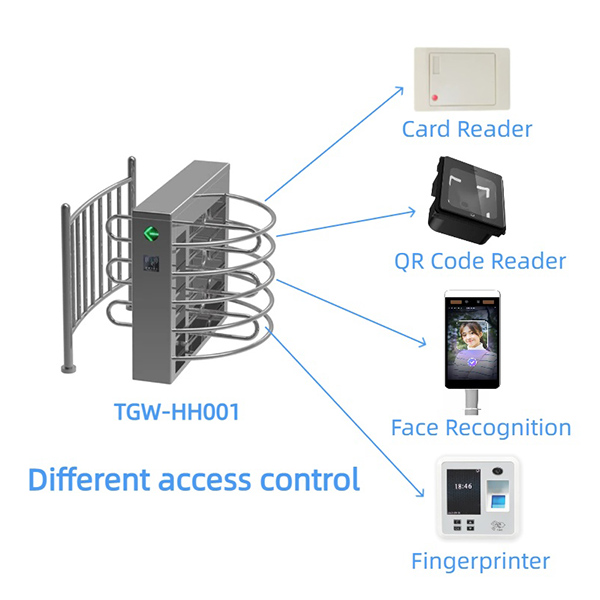

7. Can the half height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-HH001 |
| Material Of Construction | SS-304 |
| Dimension | 1400mm (L) X 1400mm (W) X 1200mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 120Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Single |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this half height turnstile gate?
Our standard half height turnstile gate size is 1400mm (length) x 1400mm (width) x 1200mm (height) and weighs about 120kg. Customized size can be made upon request.
2. What materials are used for this half height turnstile gate?
The half height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this half height turnstile gate suitable for outdoor use?
Yes, our half height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this half height turnstile gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this half height turnstile gate support two-way access?
Yes, this half height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.
7. Can the half height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
