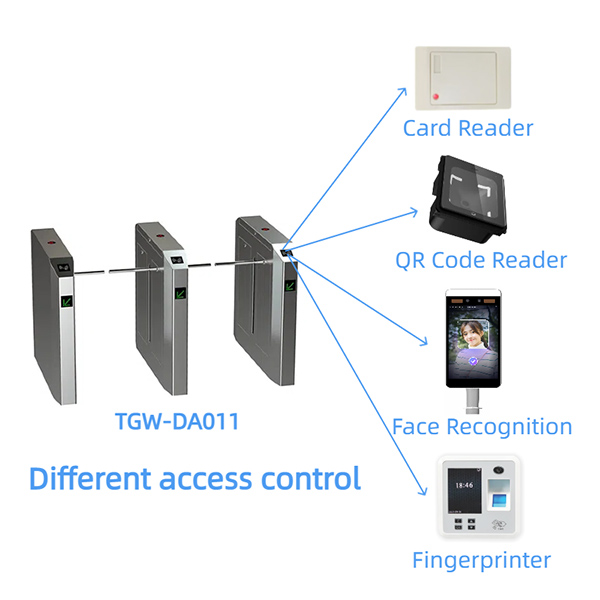

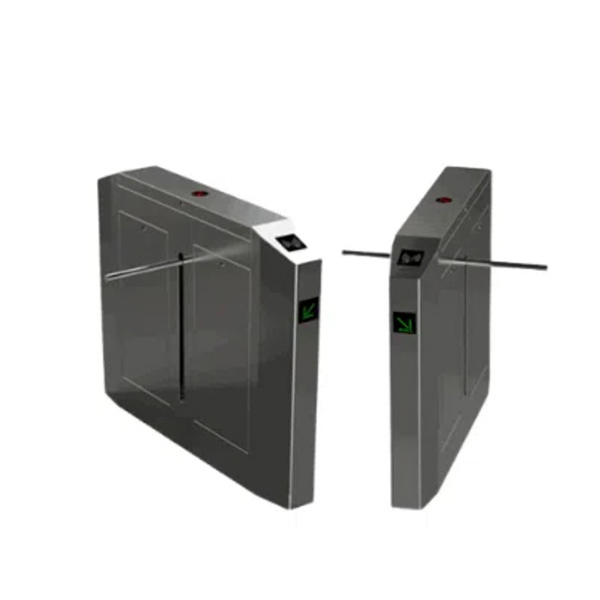

TGW-DA011 is a smart drop arm gate designed for efficient and secure pedestrian access control. It supports integration with various systems such as ID/IC cards, fingerprint, QR/barcode readers, and face recognition. Built-in sensors ensure safe passage and directional traffic flow, while LED indicators clearly display access status with red and green lights. Ideal for office buildings, transport hubs, and secure facilities.
| Product Model | TGW-DA011 |
| Material Of Construction | SS-304 |
| Dimension | 1200mm (L) X 200mm (W) X 1000mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 80Kgs. |
| Wing Width | 400mm |
| Passage Width | 800mm |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this drop arm gate?

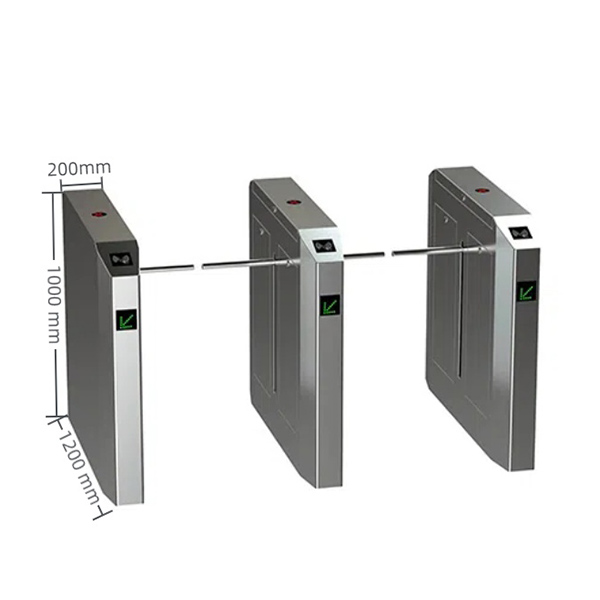

Our standard drop arm gate size is 1200mm (length) x 200mm (width) x 1000mm (height) and weighs about 80kg. Customized size can be made upon request.
2. What materials are used for this drop arm gate?
The drop arm gate is made of high-quality stainless steel 304, which is durable and weather-resistant. Its arms are also made of the same material.
3. Is this drop arm gate suitable for outdoor use?
Yes, our drop arm gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this drop arm gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this drop arm gate support two-way access?
Yes, this drop arm gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the drop arm gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. What is the function of the LED indicator light of the gate?
Green light means passage is allowed, red light means passage is prohibited, and flashing light means fault or alarm.
9. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
10. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
