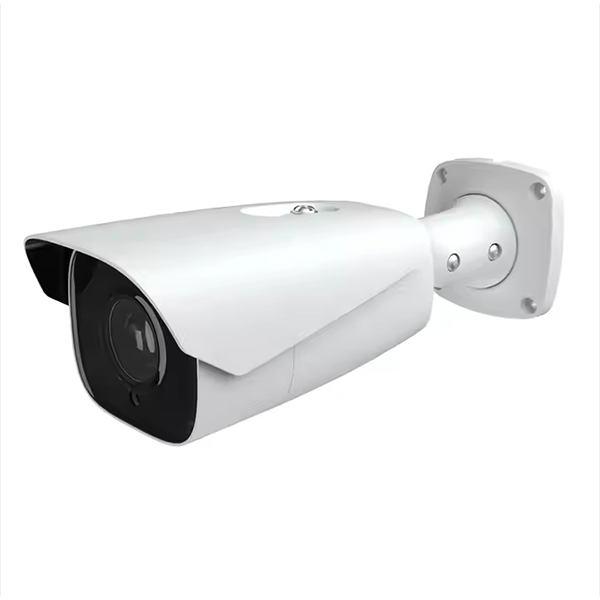

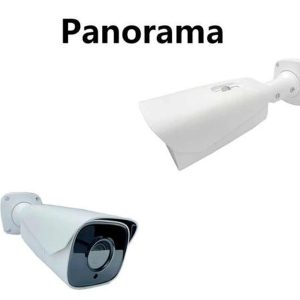

TGW-LPR3 mini camera automatic algorithm Security camera system provides a comprehensive parking management solution,allowing for effective monitoring and control of parking lots. This system is ideal for users seeking a reliable and user-friendly parking management system.
| Product Model | TGW-LRA3 |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| H.264 Compression | Baseline Profile/Main Profile/High Profile |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Alarm | 1CH alarm input; 1CH alarm output |
| RS 485 | Yes |
| Interface Protocol | ONVIF |
| PoE | Yes , IEEE802.3af |
| IR Distance | 50~70m |
| Protection Grade | IP67 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 11W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |

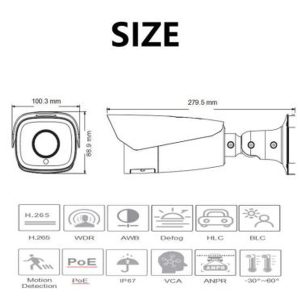

| Dimensions ( mm ) | 279.5 × 100.3 × 88.9 |
| Weight ( net ) | Approx. 1.04KG |

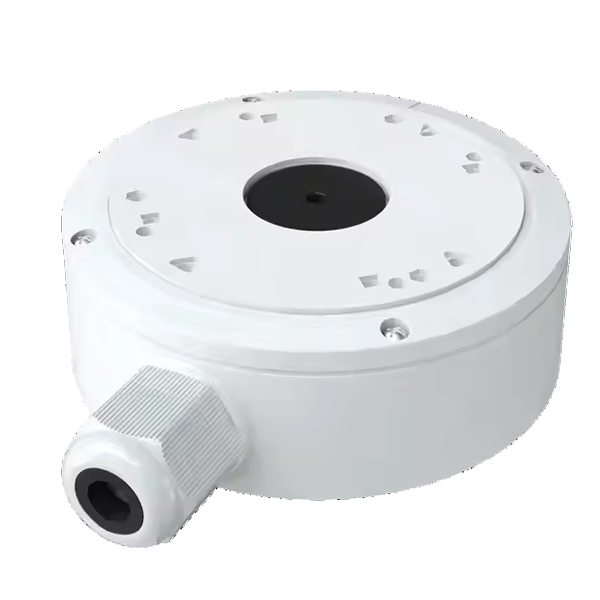

| Installation | Ceiling mounting; Wall mounting |
The camera continuously captures the video stream of the vehicle at a certain frame rate. When entering the recognition area, the system will trigger the snapshot, select one or more high-quality images for license plate recognition, compare the recognized license plate number with the database, and output the recognition result.
1. Does this camera work offline?
Yes.
2. Does this camera support ONVIF?
Yes.
3. Does this camera have PoE power supply?
Yes.
4. What is the protection grade of this camera?
This camera protection grade is IP67.
5. What are the lens parameters of this camera?
The lens parameters is 2.8~12mm@F1.4, motorized.
6. What is the recognition distance of this camera?
The recognition distance is 3-10 m.
7. What is the installation distance of this camera?
The recommended distance from the camera to the vehicle is 3-6m.
8. At what speed can the camera recognize the license plate?
The license plate can be recognized when the speed <70 km/h.
9. What is the recognition principle of this camera?
The camera continuously captures the video stream of the vehicle at a certain frame rate.
10. What interfaces does this camera include?

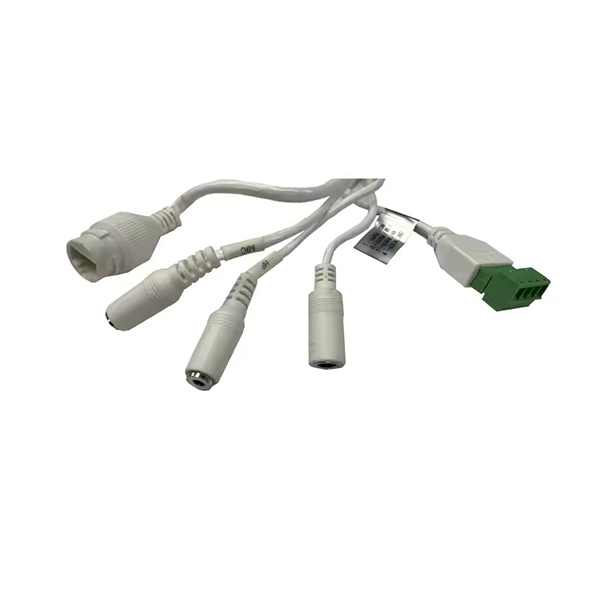

This camera includes RS485 interface, Ethernet interface, DC12V power interface and Alarm interface.
11. Does this camera support storage information?
Yes. Without SD card, it can store 10,000 pieces of data (excluding pictures). If you need to store more data and pictures, you need to add SD card.
12. What countries can this camera recognize?
This camera can recognize license plates from more than 130 countries and regions, such as Singapore, Australia, Ethiopia, Spain, Poland, etc.
13. Does it support use with DVR or NVR?
Yes. When used with DVR, it can record the video recorded by the camera; when used with NVR, it can not only record the video recorded by the camera, but also record the license plate information.
