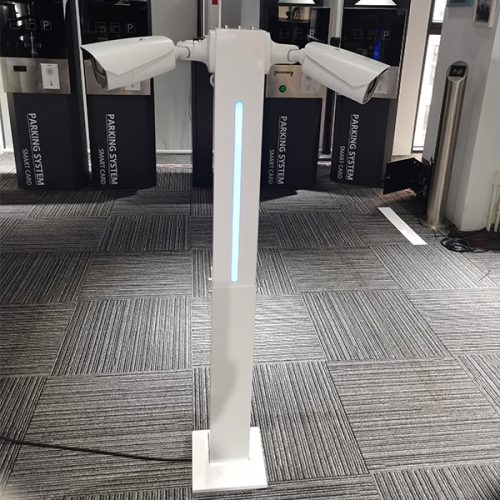

ANPR/ALPR Parking System – TGW-Stand2

1. This product can be used independently for license plate recognition of whitelisted vehicles, fixed vehicles, etc. It is suitable for schools, factories, hospitals and other places.
2. Provide free web-based software. (After entering the camera IP address, you can adjust parameters on the software, enter and store vehicle information, etc.)

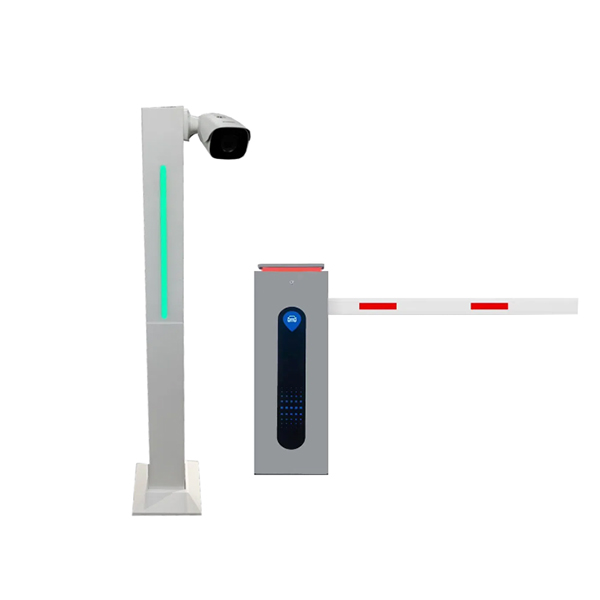

3. Can be used in conjunction with barriers to manage vehicle access and temporary vehicle charges.
4. Easy to install, suitable for parking lots, community entrances and exits, etc.
5. The light on the column has 7 colors that can be adjusted, and can be used as a traffic light when connected to barriergate.

1. Vehicle entry: When a vehicle enter the recognition area of the entrance lane, the camera is triggered to automatically capture the license plate image. The system verifies the license plate information and then allow the vehicle to pass, and store the relevant information in the database.
2. Parking payment: The system continuously records the parking time of the vehicle and updates the billing information in real time. The vehicle need to pay before leaving the vehicle. The system will mark the license plate as “paid” and record the payment time and validity period.
3. Vehicle exit: When a vehicle enter the recognition area of the exit lane, the camera is triggered to automatically capture the license plate image. The system recognizes the license plate number, matches it with the entry record in the database, and verifies the payment status. If the fee has been paid, the vehicle can exit. After exiting, the system automatically archives the data.

1. Does this camera work offline?

Yes.

2. Does this camera support ONVIF?

Yes.

3. Does this camera have PoE power supply?

Yes.

4. What is the protection grade of this camera?

This camera protection grade is IP67.

5. What are the lens parameters of this camera?

The lens parameters is 2.8~12mm@F1.4, motorized.

6. What is the recognition distance of this camera?

The recognition distance is 3-10 m.

7. What is the installation distance of this camera?

The recommended distance from the camera to the vehicle is 3-6m.

8. At what speed can the camera recognize the license plate?

The license plate can be recognized when the speed <70 km/h.

9. What is the recognition principle of this camera?

The camera continuously captures the video stream of the vehicle at a certain frame rate.

10. What interfaces does this camera include?

This camera includes RS485 interface, Ethernet interface, DC12V power interface and Alarm interface.

11. Does this camera support storage information?

Yes. Without SD card, it can store 10,000 pieces of data (excluding pictures). If you need to store more data and pictures, you need to add SD card.

12. What countries can this camera recognize?

This camera can recognize license plates from more than 130 countries and regions, such as Singapore, Australia, Ethiopia, Spain, Poland, etc.

13. Does it support use with DVR or NVR?

Yes.When used with DVR, it can record the video recorded by the camera; when used with NVR, it can not only record the video recorded by the camera, but also record the license plate information.

14. How does this LPR device work with the barrier gate?

When the system verifies the license plate information or payment status, it send a signal to the barrier gate controller, and the motor drive the barrier to lift and release the vehicle.
