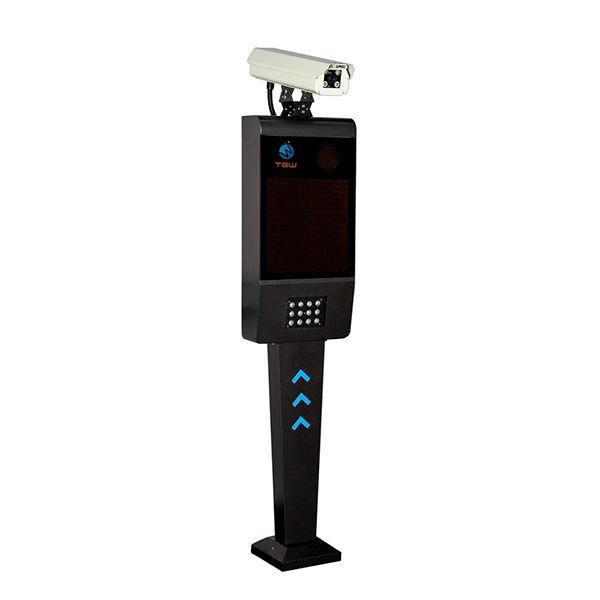

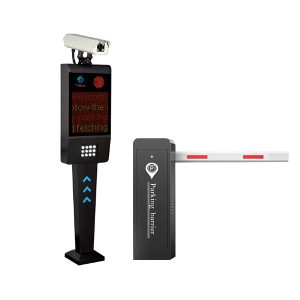

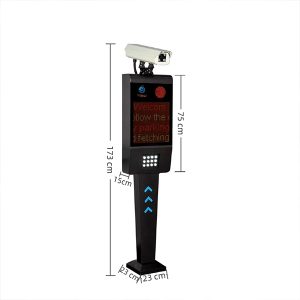

ANPR/ALPR Parking System – TGW-LDV4

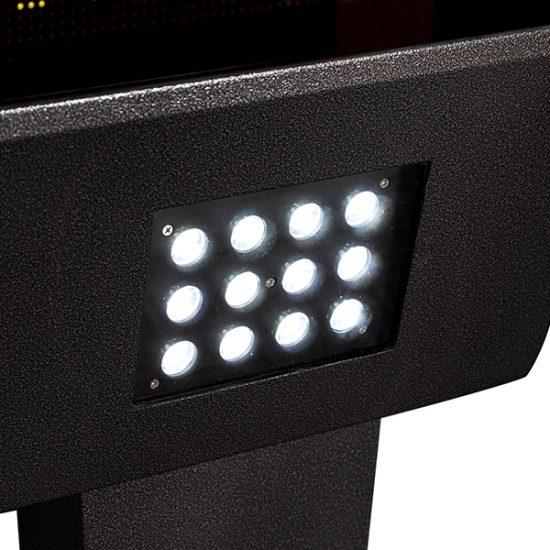

1. Built-in fill light, automatically senses ambient light, intelligently adjusts fill light brightness, supports 24-hour license plate recognition.
2. Supports display of license plate information and voice broadcast to improve user experience,easy to install, suitable for parking lots, community entrances and exits, etc.
3. Can be used in conjunction with barriers to manage vehicle access and temporary vehicle charges.
4. Supports license plate recognition result output, and can perform data statistics and analysis through the software platform.

1. Vehicle entry: When a vehicle enter the recognition area of the entrance lane, the camera is triggered to automatically capture the license plate image. The system verifies the license plate information and then allow the vehicle to pass, and store the relevant information in the database.
2. Parking payment: The system continuously records the parking time of the vehicle and updates the billing information in real time. The vehicle need to pay before leaving the vehicle. The system will mark the license plate as “paid” and record the payment time and validity period.
3. Vehicle exit: When a vehicle enter the recognition area of the exit lane, the camera is triggered to automatically capture the license plate image. The system recognizes the license plate number, matches it with the entry record in the database, and verifies the payment status. If the fee has been paid, the vehicle can exit. If the fee has not been paid, a voice prompt will be given. After exiting, the system automatically archives the data.

1. Does this camera support ONVIF?

Yes.

2. What interfaces does this camera include?

This camera includes TCP interface，IP interface and RS485 interface.

3. What is the recognition distance of this camera?

The recognition distance is 3-10 m.

4. What are the lens parameters of this camera?

The lens parameters is 2.8~12mm, motorized.

5. What is the installation distance of this camera?

The recommended distance from the camera to the vehicle is 3-6m.

6. At what speed can the camera recognize the license plate?

The license plate can be recognized when the speed <30 km/h or <70 km/h ,its depend on the camera.

7. What countries can this camera recognize?

This camera can recognize license plates from more than 130 countries and regions, such as Singapore, Australia, Ethiopia, Spain, Poland, etc.

8. What is the recognition principle of this camera?

The vehicle trigger the camera to capture license plate image, and then upload the captured information to the software. The software compare and analyze the information, output the results and uploads them to the database, and finally returns the output results.

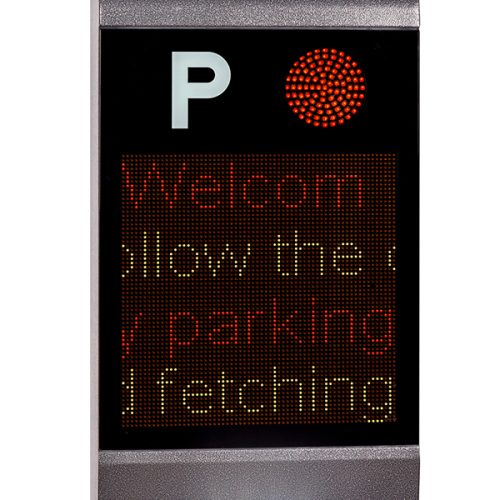

9. What does this LPR device display?

This LPR machine display the license plate number，entry time and welcome speech etc.,support voice broadcast of these contents.

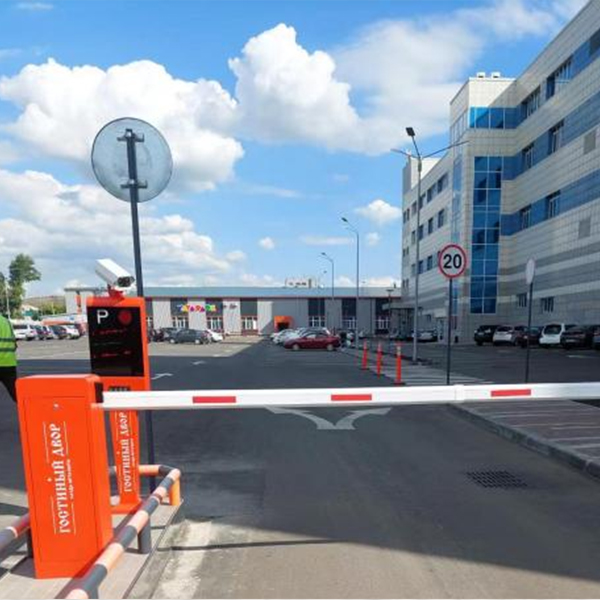

10. How does this LPR device work with the barrier gate?

When the system verifies the license plate information or payment status, it send a signal to the barrier gate controller, and the motor drive the barrier to lift and release the vehicle.
